The Cognitive Science of Multi-Display Workstations
Expanding your desktop real estate across multiple monitors is one of the most effective hardware upgrades for knowledge workers, software developers, and content creators. Research demonstrates that adding a second display boosts complex task throughput by up to 35% by eliminating persistent Alt-Tab application toggling.
However, poorly configured multi-monitor layouts introduce severe ergonomic hazards: cervical spine strain from repetitive horizontal neck swiveling, visual fatigue caused by mismatched scaling DPIs, and window clutter that fragments mental focus. This engineering guide outlines optimal ergonomic alignment and modern window tiling setups.

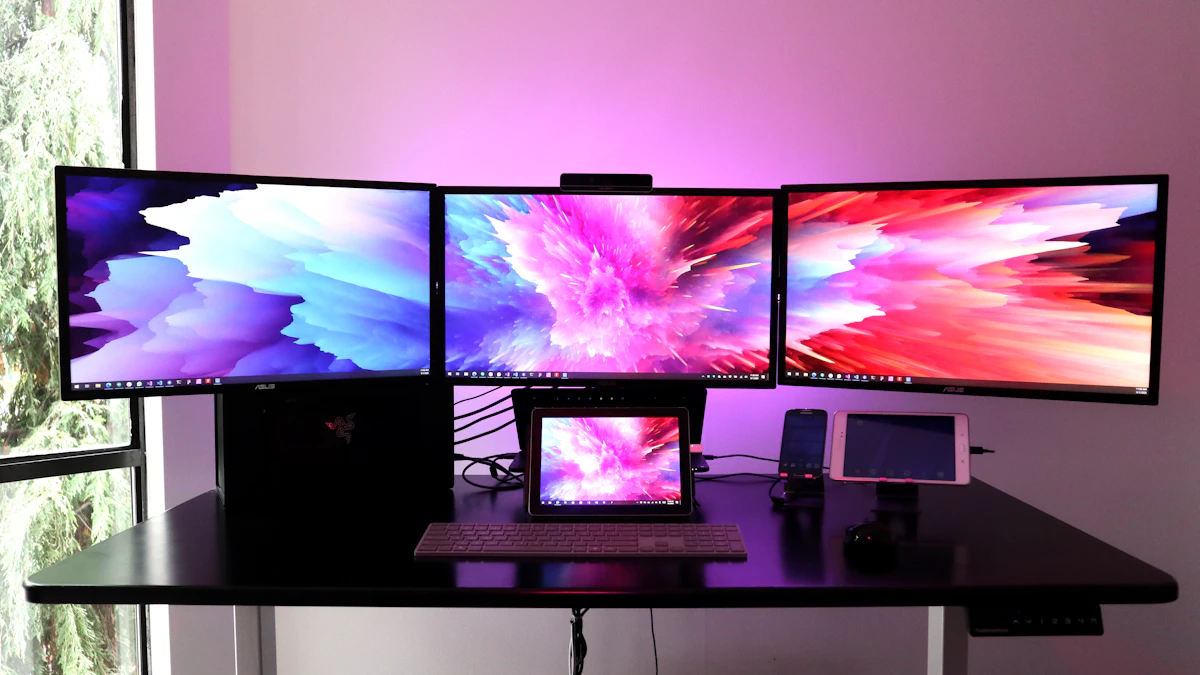

Physical Layout Principles: Primary vs. Secondary Orientation
| Setup Architecture |
Best Application |
Ergonomic Assessment |
| Centered Primary + Flanking Secondary |
Coding, Video Editing, Writing |
Optimal: Primary screen sits directly in eye-line with zero neck tilt |
| Side-by-Side Centered Seam |
Financial Trading, Monitoring |
Poor: Forces continuous neck twisting toward either left or right display |
| Primary Ultrawide + Vertical Portrait |
Full-Stack Dev, Documentation, Chat |
Excellent: Vertical panel displays 120+ lines of code without scrolling |
Eye Level and Focal Distance Calibration
- Top Third Eye Alignment: Adjust your monitor arm height so that your natural resting gaze aligns precisely with the top third of the primary screen. This maintains a slight downward gaze (15° to 20°), preventing dry eye syndrome.
- Arm's Length Distance: Position the display approximately 20 to 28 inches (50–70 cm) from your eyes. For large 32-inch or 34-inch ultrawide panels, increase distance to 30–32 inches to keep edges within peripheral vision.
- Curvature Match: For ultrawide displays exceeding 34 inches, an aggressive 1000R or 1500R curvature ensures that light rays from the left and right extremities hit your retinas at the identical focal distance as the center.
Modern Window Management & Tiling Ecosystems
To maximize screen productivity without manually resizing overlapping windows with a mouse, leverage modern keyboard-driven window managers:
- macOS (Aerospace, Rectangle, Raycast): Aerospace brings i3-like automatic bspwm tiling to macOS. Rectangle offers instantaneous keyboard shortcuts (e.g., Option+Cmd+Left/Right for snap halves).
- Windows 11 (Microsoft PowerToys FancyZones): Create custom snap grids with pixel-perfect margins. Holding Shift while dragging any window snaps it cleanly into a designated layout zone.
- Linux (Hyprland, Sway, i3): Dynamic tiling Wayland compositors that manage virtual workspaces with sub-millisecond keyboard switching.
DPI Scaling and Refresh Rate Harmonization
Avoid pairing a 4K 60Hz display with a 1440p 144Hz screen on legacy graphics pipelines. While modern OS display servers (macOS Metal and Windows DWM) support mixed DPI, subtle GPU composition overhead can cause micro-stutters during cross-monitor drags. Whenever possible, align refresh rates to multiples (e.g., 60Hz and 120Hz) to ensure flawless hardware acceleration.
