Why SSD Cloning Outclasses Clean OS Reinstallation
Upgrading your primary operating system storage from a sluggish SATA SSD or cramped 512GB NVMe drive to a high-speed 2TB or 4TB PCIe 4.0/5.0 drive is the most effective hardware performance boost available. However, performing a clean Windows or Linux installation requires days of tedious application re-downloading, license reactivation, and personalization re-configuration.
Sector-by-sector drive cloning creates an exact bit-level replica of your boot volume—including the UEFI ESP partition, GUID Partition Table (GPT), user profiles, and registry keys—allowing you to boot instantly on the new SSD with zero downtime.
Essential Pre-Cloning Checklist & Security Precautions
- Temporarily Suspend BitLocker / FileVault: If your source drive is encrypted via Windows BitLocker, suspend protection before cloning. Cloning an active encrypted volume can corrupt the Trusted Platform Module (TPM) decryption handshake on the target drive.
- Verify Target Capacity: Ensure the unallocated space on the target SSD exceeds the total utilized storage on the source drive.
- High-Speed NVMe USB Enclosure: Use a 10Gbps or 40Gbps USB-C enclosure to connect the new SSD as an external device during the cloning operation.
Recommended Cloning Tools Comparison
| Software Utility |
License Model |
Key Strengths |
| Clonezilla Live |
100% Free & Open Source |
Bare-metal sector-level precision; immune to active OS lockouts |
| Samsung Data Migration |
Free (Samsung drives only) |
Seamless live hot-cloning directly within active Windows desktop |
| Macrium Reflect / Rescue Media |
Commercial / Trial |
Outstanding dynamic partition resizing during transfer |
Step-by-Step Cloning Execution with Clonezilla Live
- Create Bootable USB: Download the latest Clonezilla Live ISO (Debian-based) and flash it onto an 8GB USB drive using Rufus or BalenaEtcher.
- Boot into BIOS/UEFI: Insert the Clonezilla USB and your new target SSD enclosure. Reboot your PC, press F2/F12/Del to enter UEFI settings, and disable Fast Boot.
- Select Disk-to-Disk Clone: Choose device-device work directly > disk_to_local_disk clone. Carefully designate your source SSD (e.g.,
nvme0n1) and destination SSD (e.g., nvme1n1).
- Execute Cloning: Confirm partition table creation and sector copy. A typical 500GB clone across NVMe drives finishes in 6 to 12 minutes.

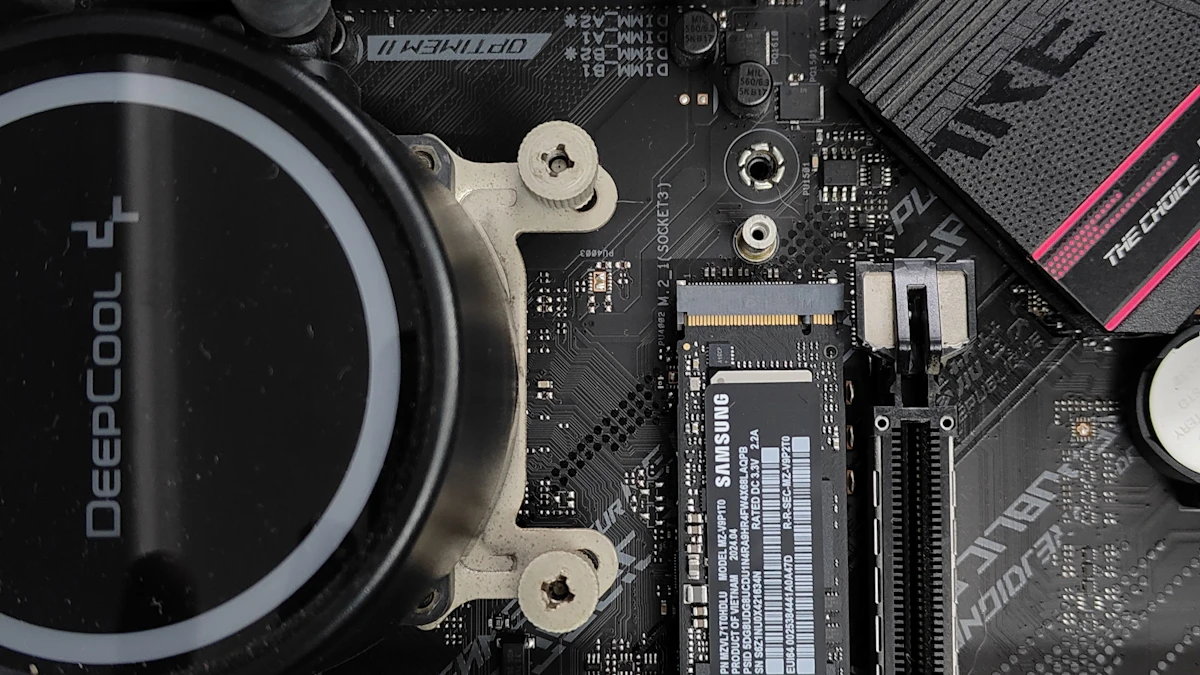

- Physical Swap & Partition Extension: Power down, swap the new SSD into the primary M.2 slot on your motherboard. Boot into Windows, open
diskmgmt.msc, right-click your C: drive, and select Extend Volume to reclaim remaining unallocated gigabytes.
Summary
By following proper BitLocker suspension and verified sector replication, upgrading your primary boot drive is safe, reliable, and completely eliminates the frustration of operating system reinstallation.
